상세스펙
General

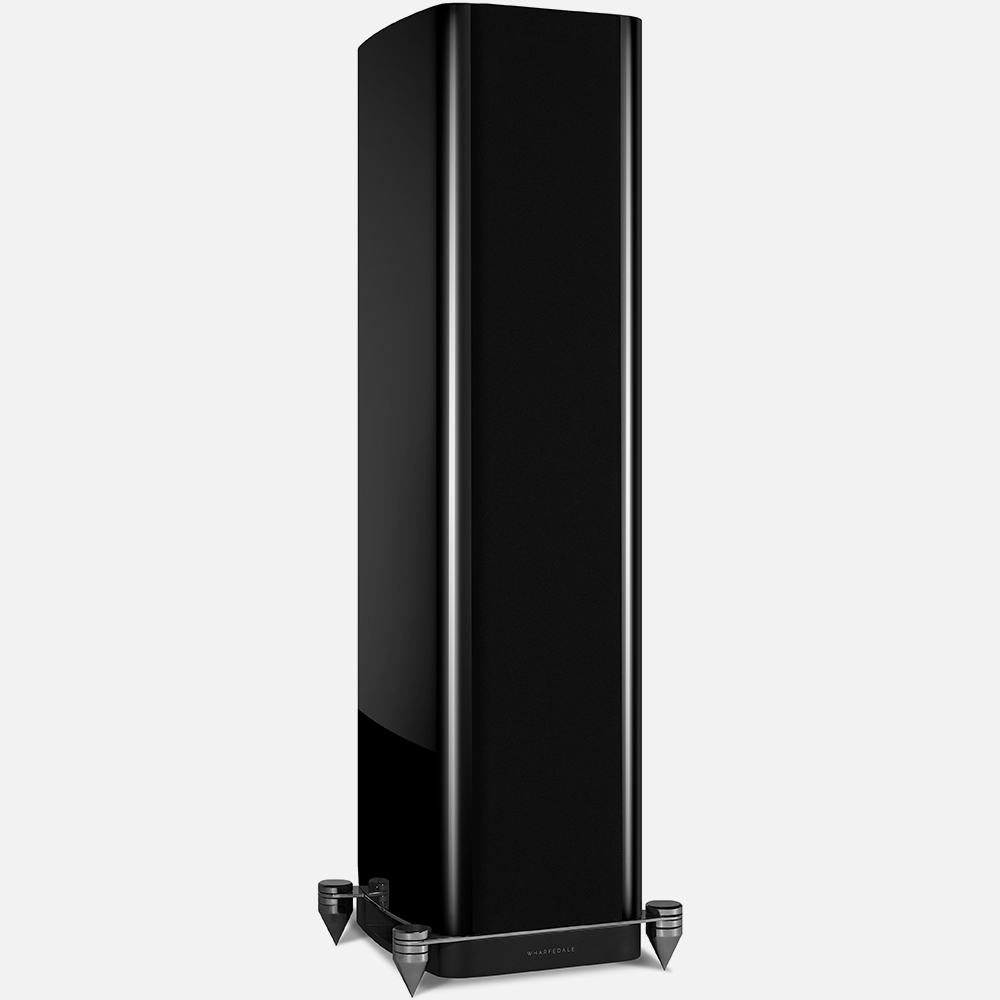

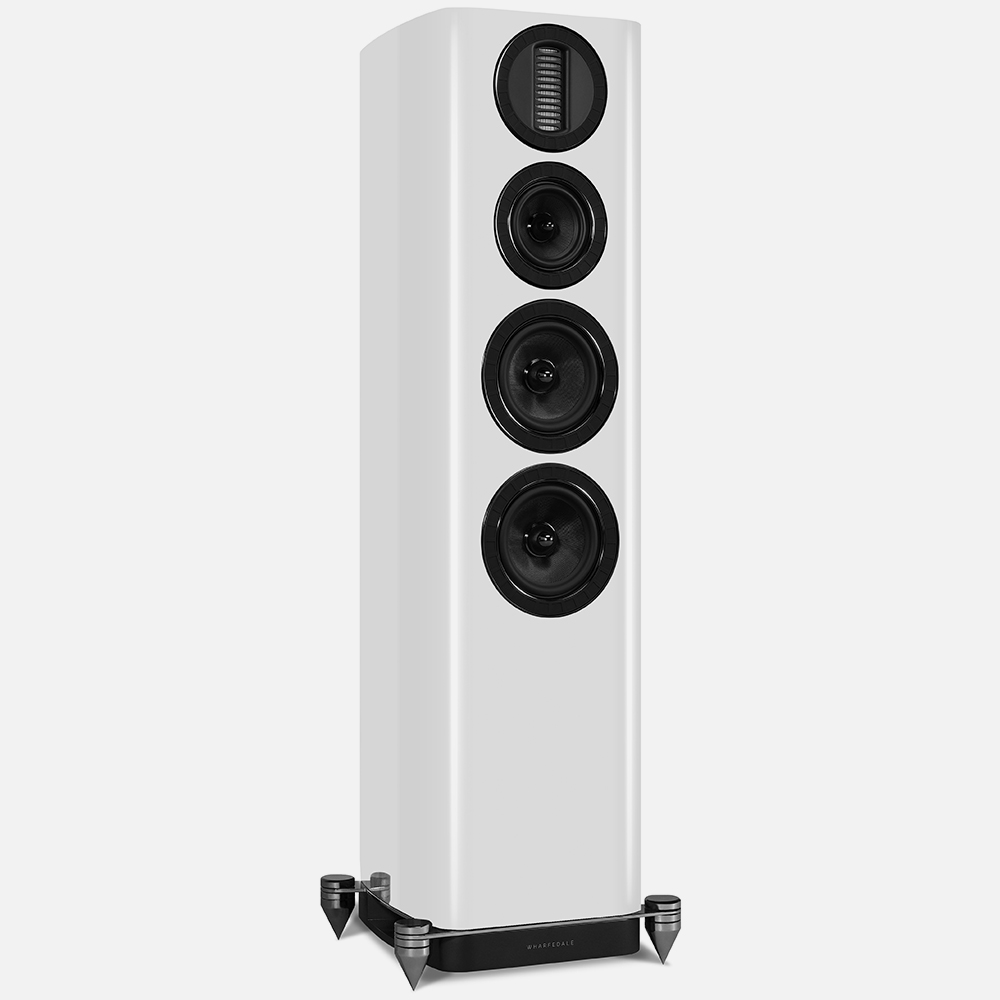

| General description | 3-way floorstanding speaker |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
ABR
| Bass driver | 5"(130mm) Black Glass Fibre Matrix Cone x2 |
| Midrange driver | 4"(100mm) Black Glass Fibre Matrix Cone |
| High Frequency Driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended amplifer power | 25-150W |
| Peak SPL | 104dB |
| Nominal impedance | 6Ω (8Ω compatible) |
| Minimum impedance | 3.1Ω |
| Frequency response(+/-3dB) | 39Hz ~ 22kHz |
| Bass extension (-6dB) | 28Hz |
| Crossover frequency | 460Hz ,3.3kHz |
| Cabinet Volume (in litres) | 4L/42.8L |
Dimensions(mm)
| Height (on plinth) | 1037mm |
| Width | 246mm |

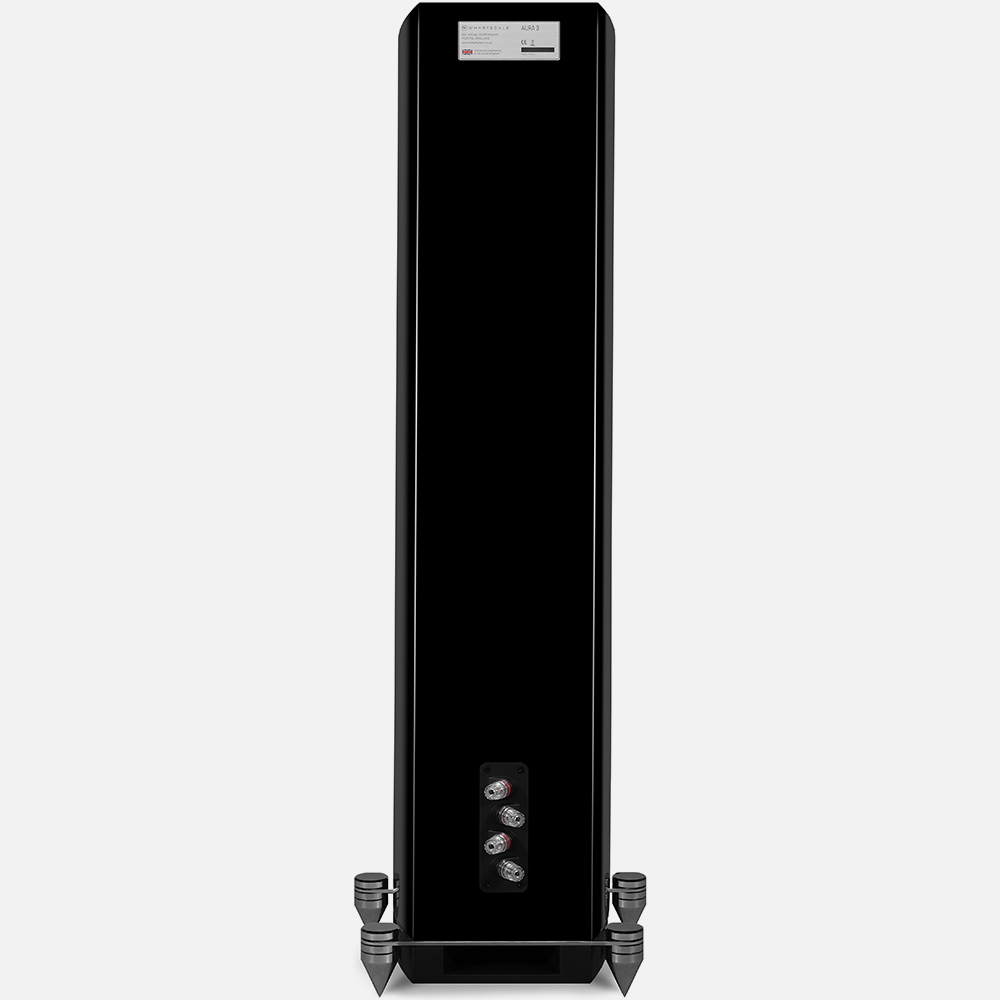

| Depth (with terminals) | (300+52)mm |
| Carton size | 455 x 395 x 1155mm |
| Net weight | 23.0kg/pcs |
| Gross weight | 25.0kg/ctn |

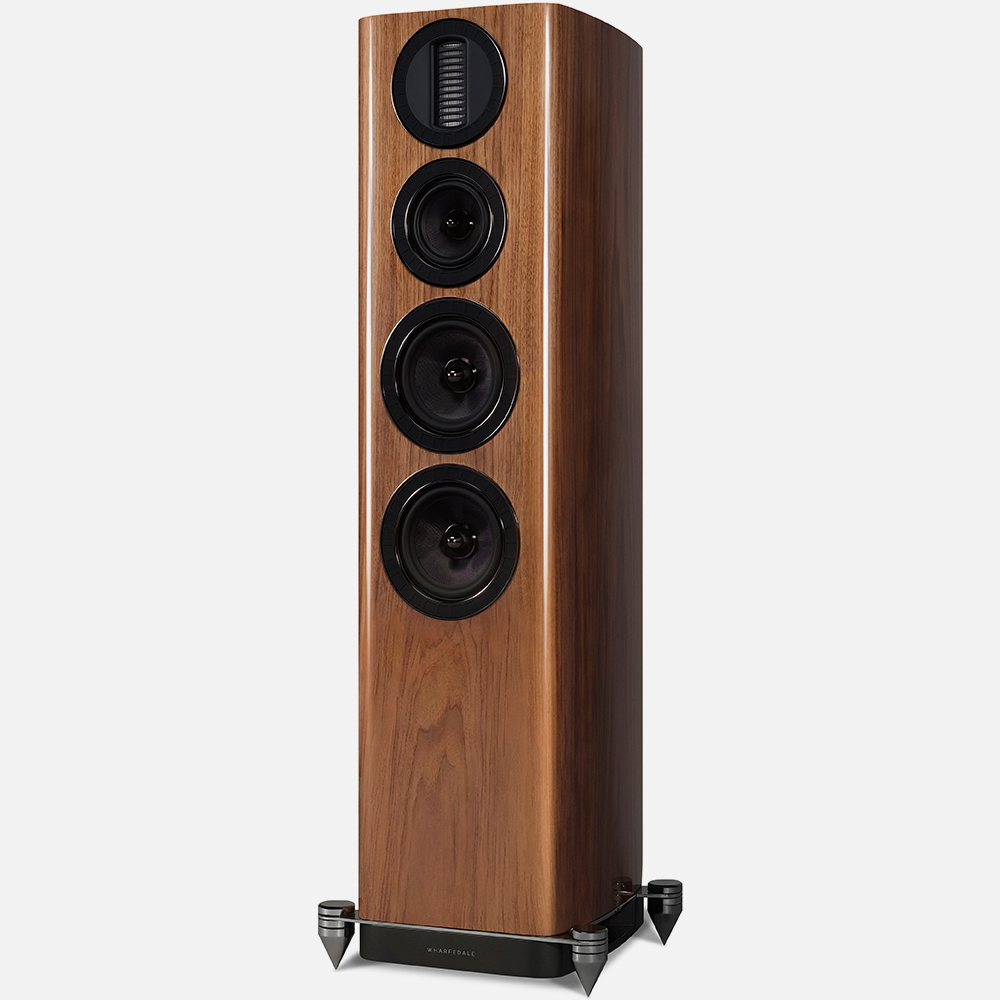

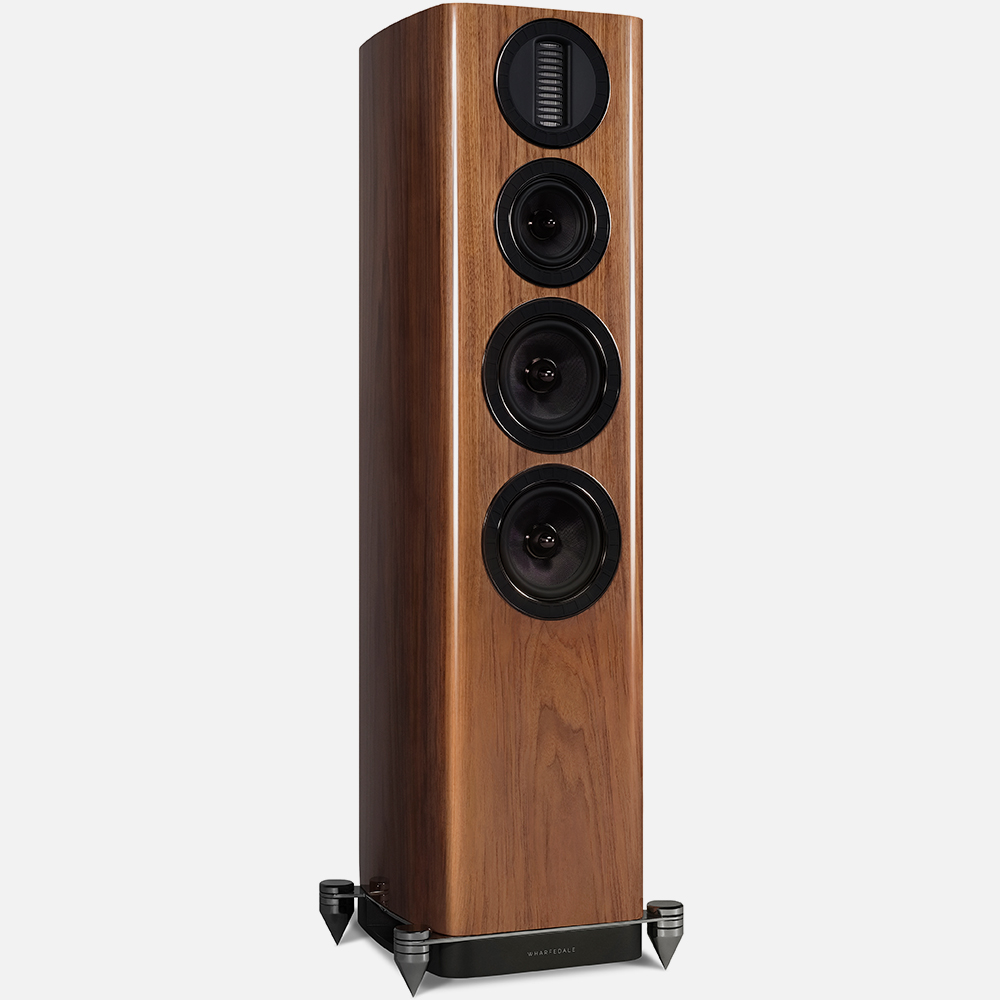

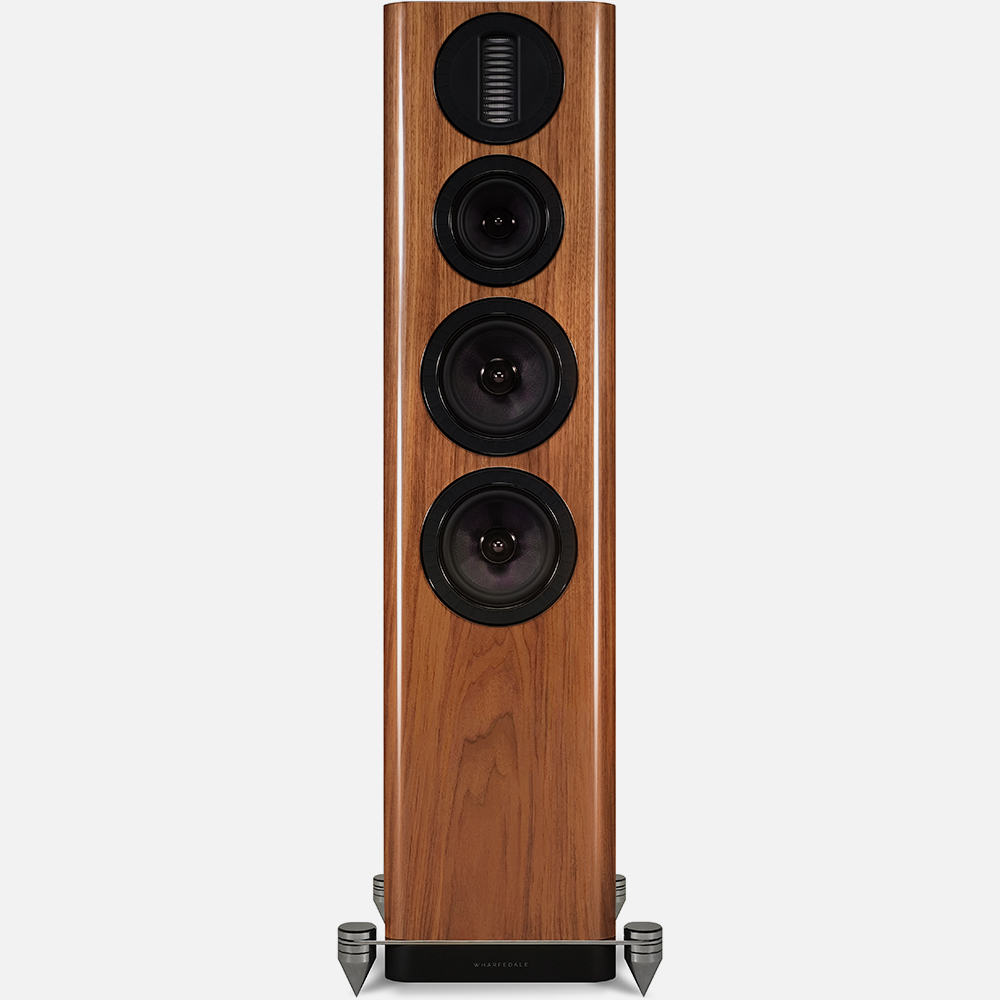

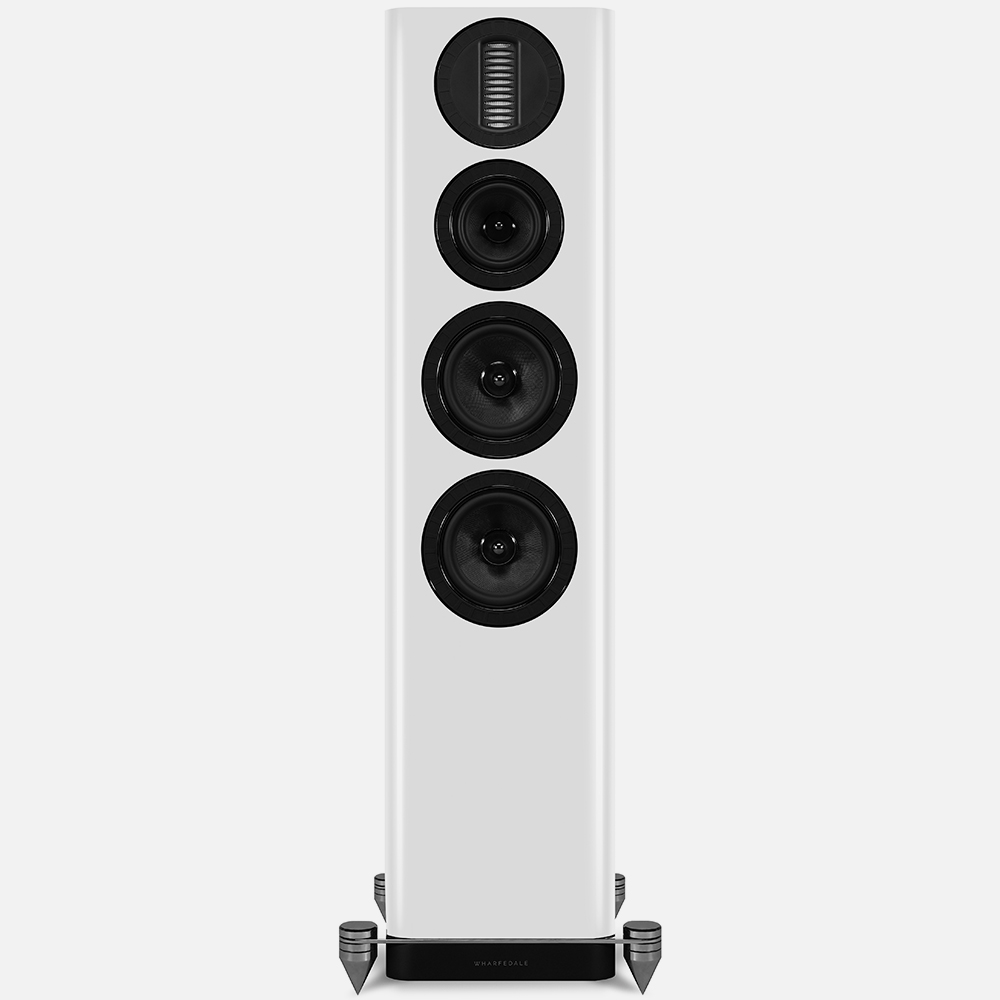

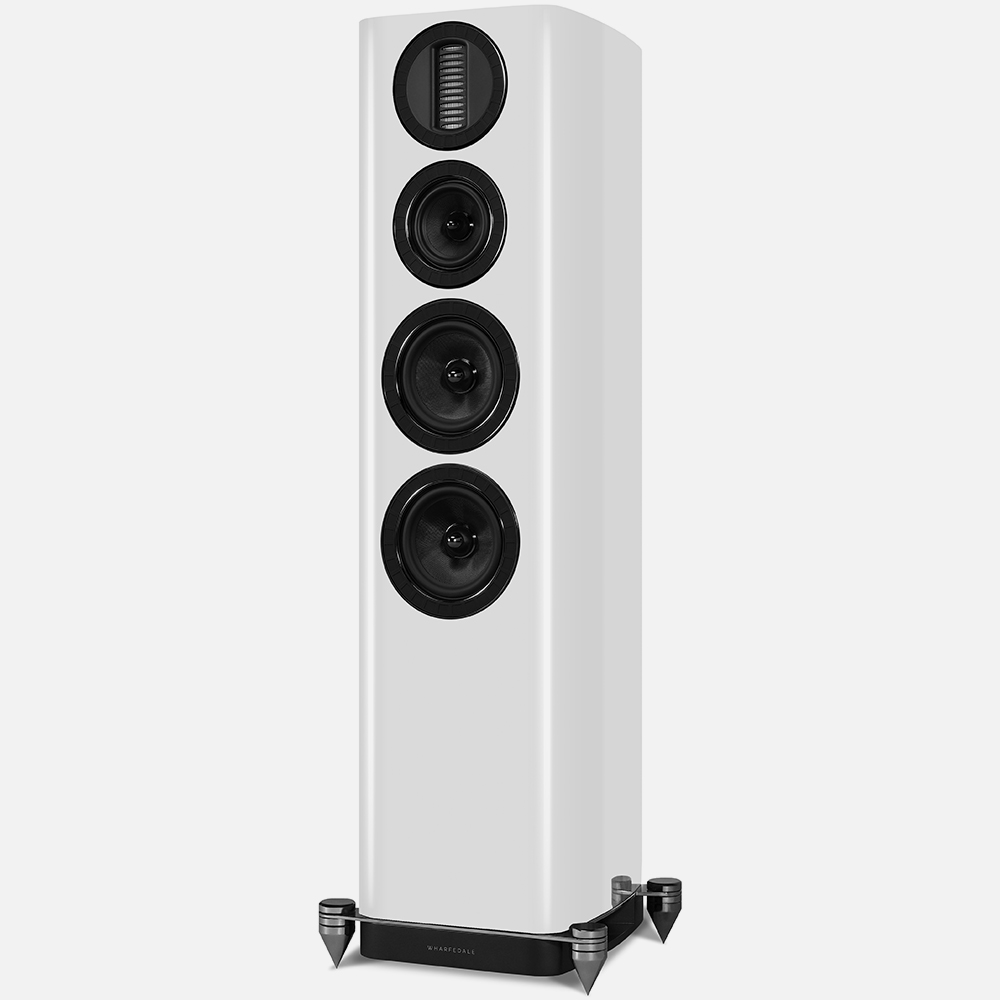

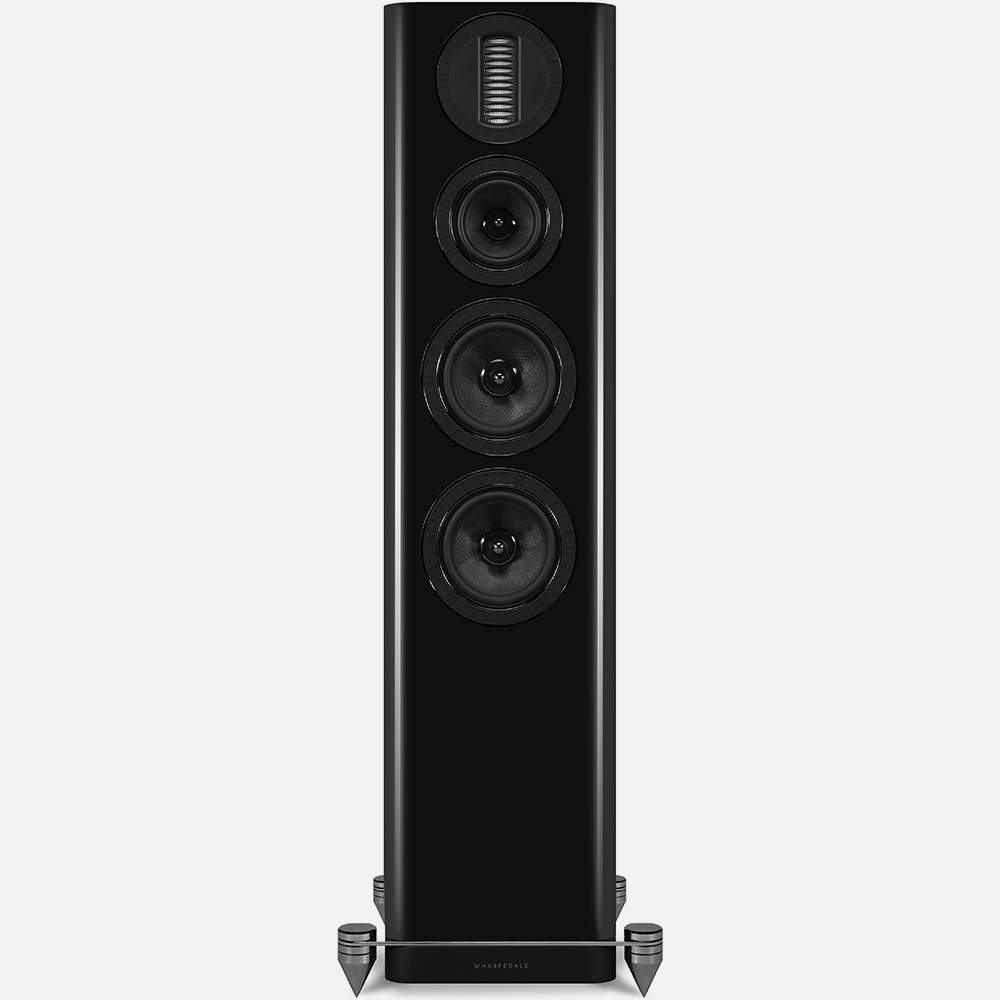

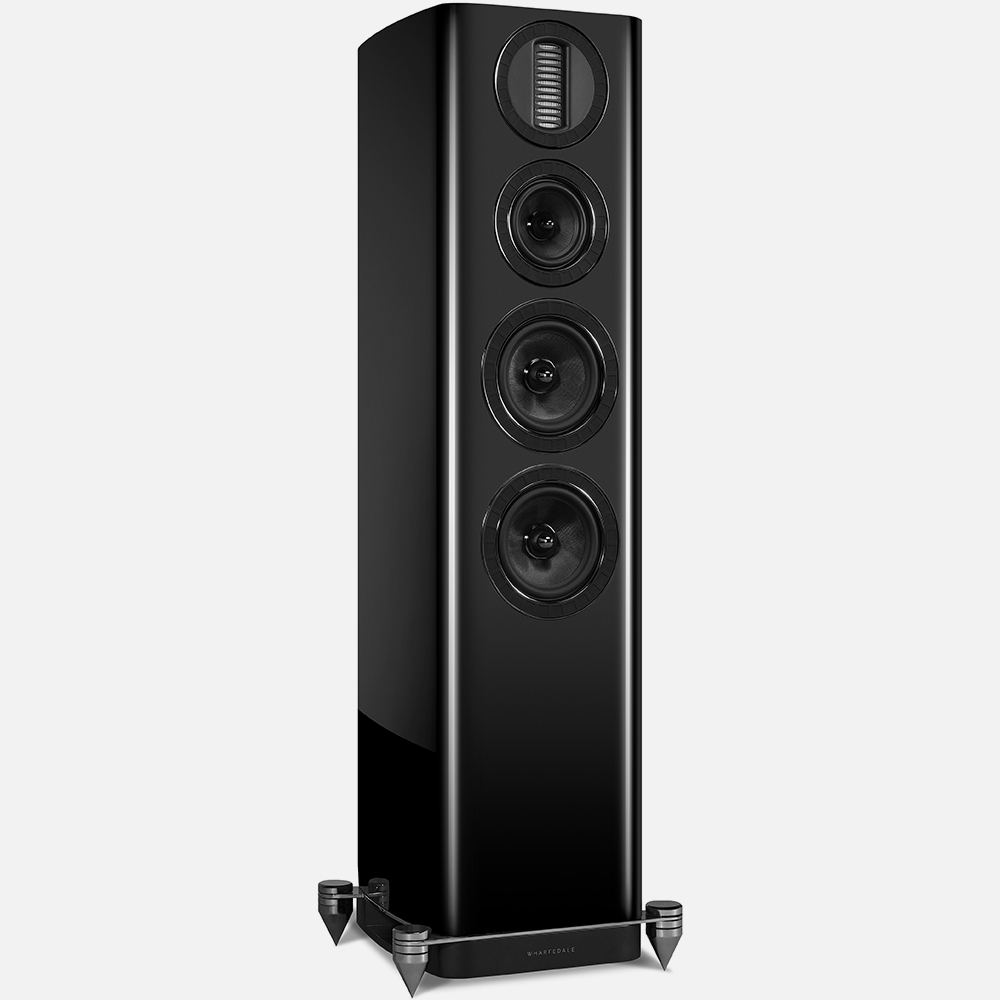

| Finish | Walnut/White/Black hi-gloss |
