상세스펙
General

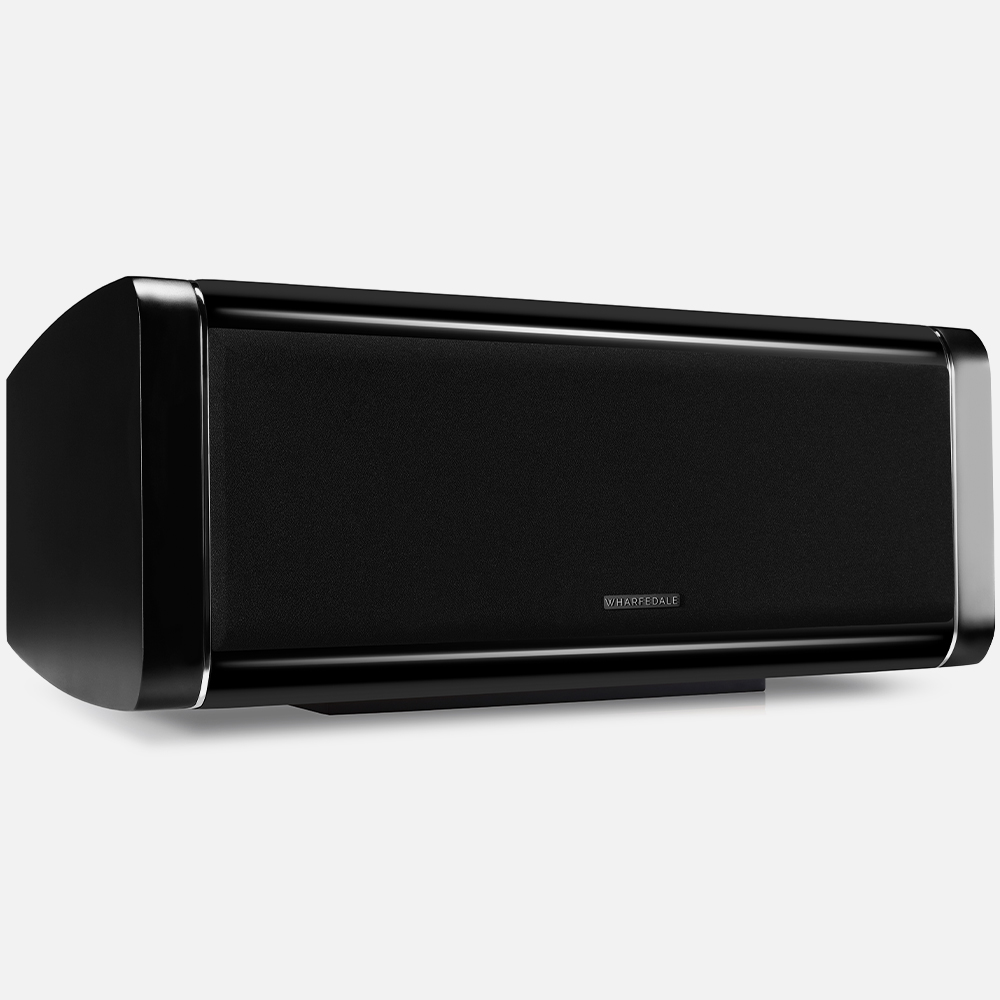

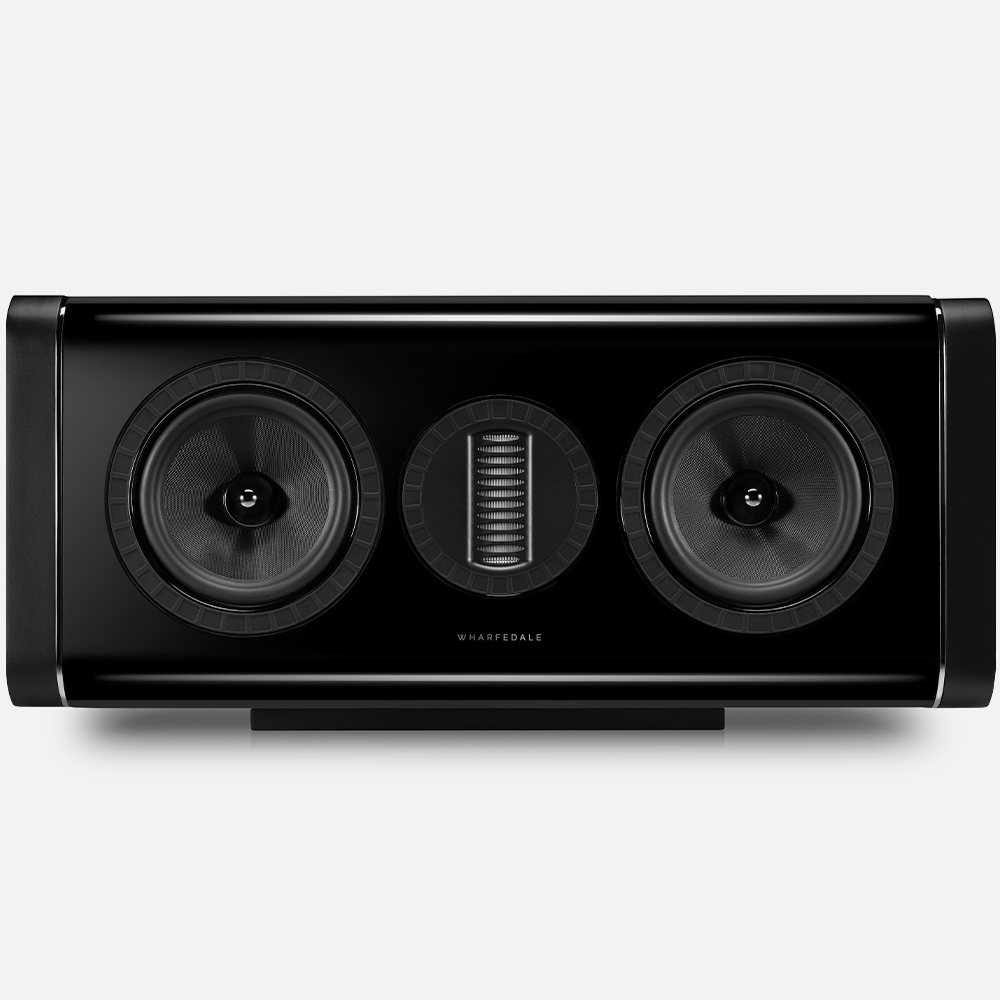

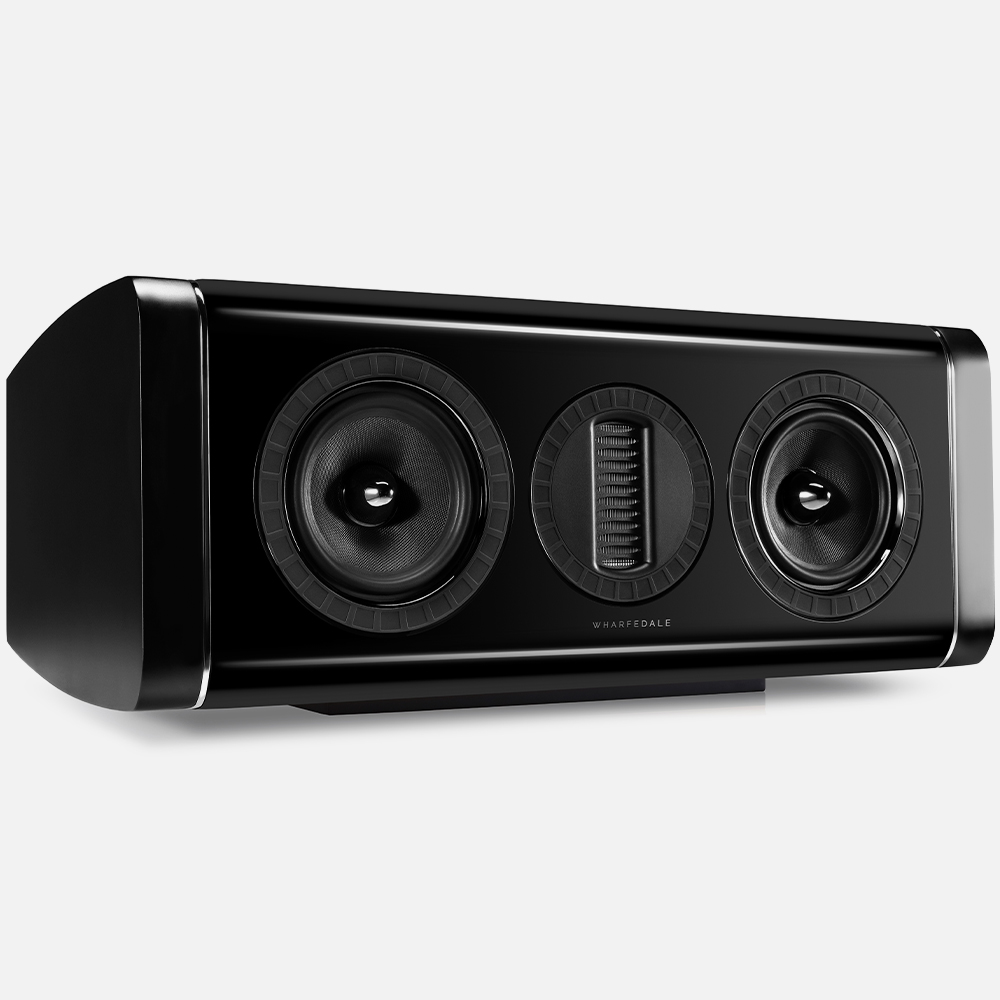

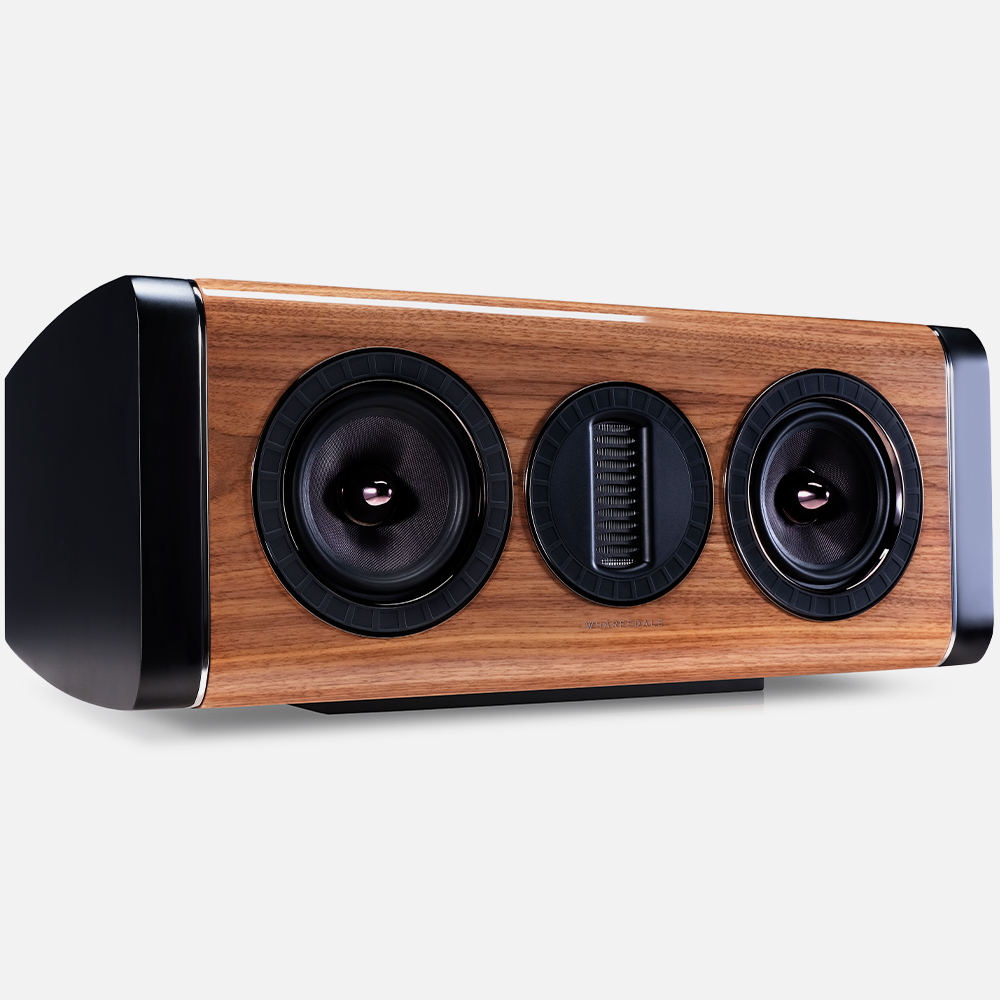

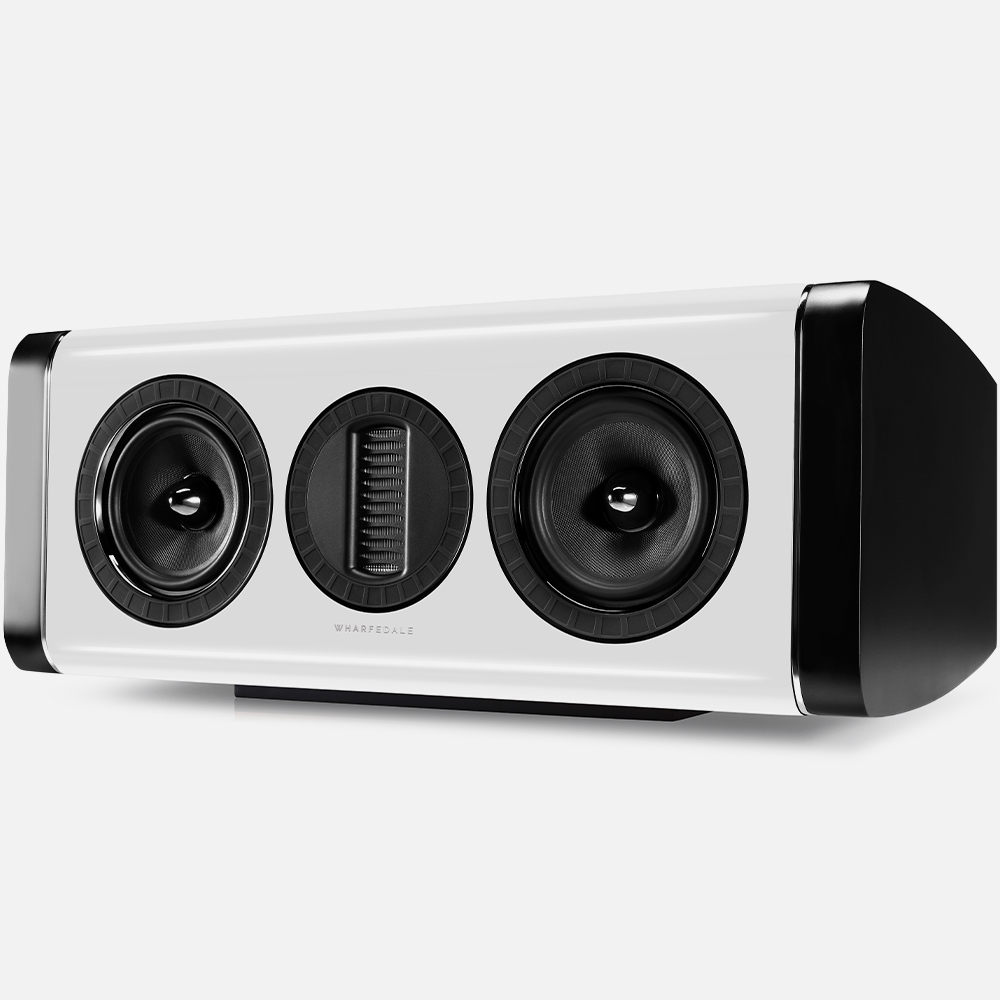

| General description | 2-way centre speaker |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
ABR
| Bass driver | 5"(130mm) Black Glass Fibre Matrix Cone x2 |
Midrange driver
| High Frequency Driver | 27 x 90mm AMT |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended amplifer power | 25-150W |
| Peak SPL | 105dB |
| Nominal impedance | 6Ω (8Ω compatible) |
| Minimum impedance | 3.8Ω |
| Frequency response(+/-3dB) | 56Hz ~ 22kHz |
| Bass extension (-6dB) | 45Hz |
| Crossover frequency | 2.4kHz |
| Cabinet Volume (in litres) | 25.5L |
Dimensions(mm)
| Height (on plinth) | 252mm |
| Width | 615mm |

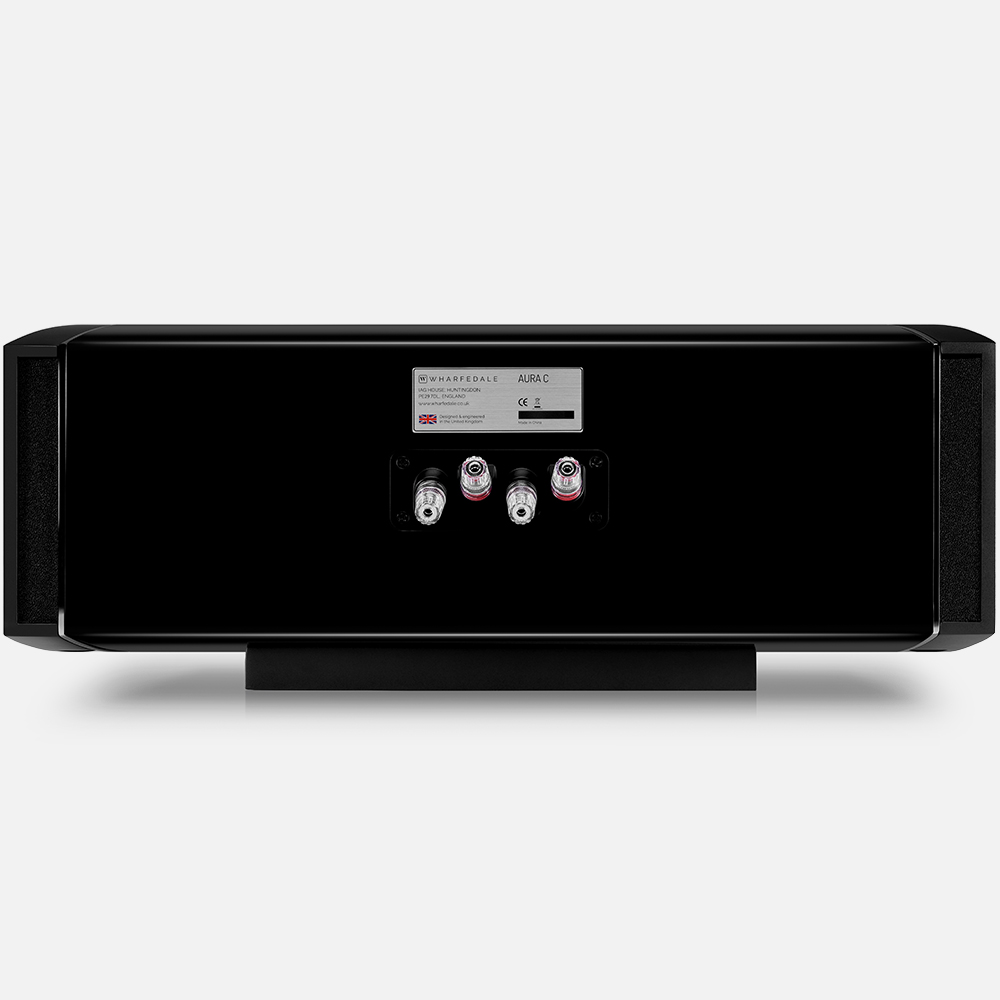

| Depth (with terminals) | (300+52)mm |
| Carton size | 725 x 420 x 345mm |
| Net weight | 18.6kg/pcs |
| Gross weight | 20.0kg/ctn |

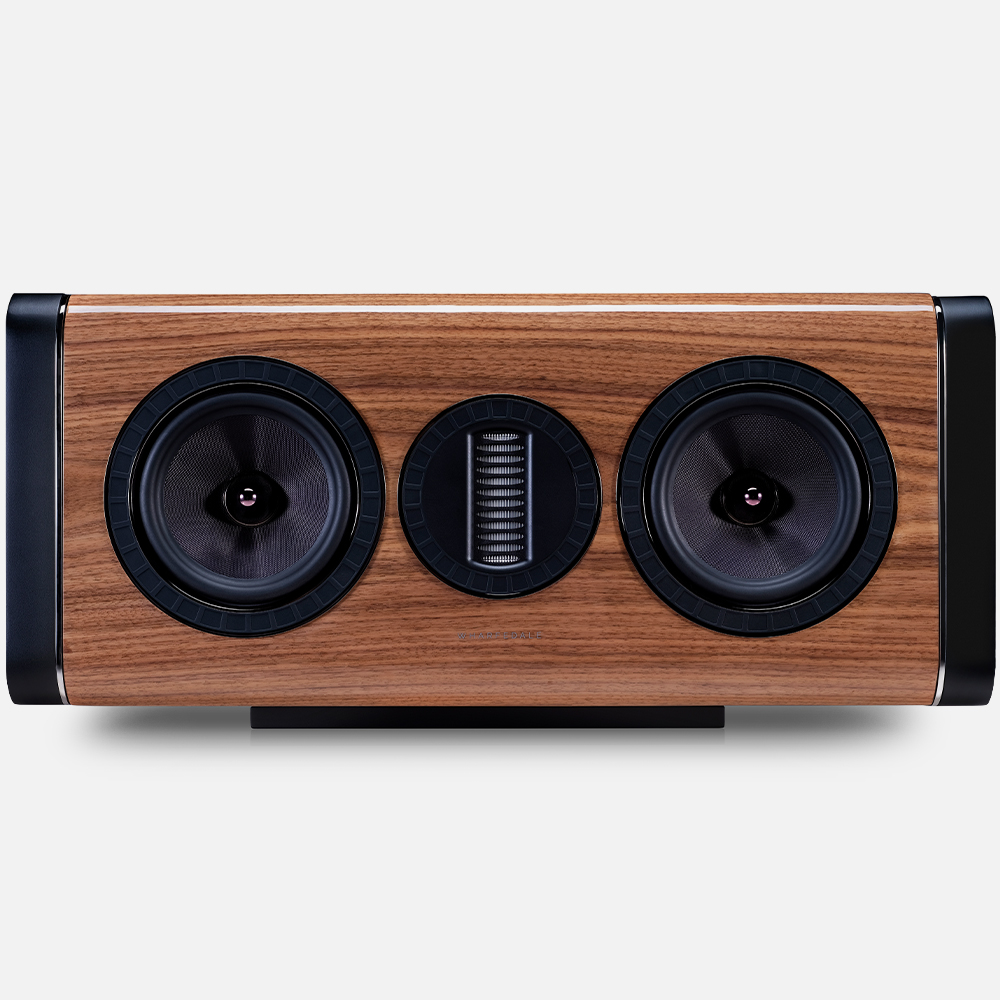

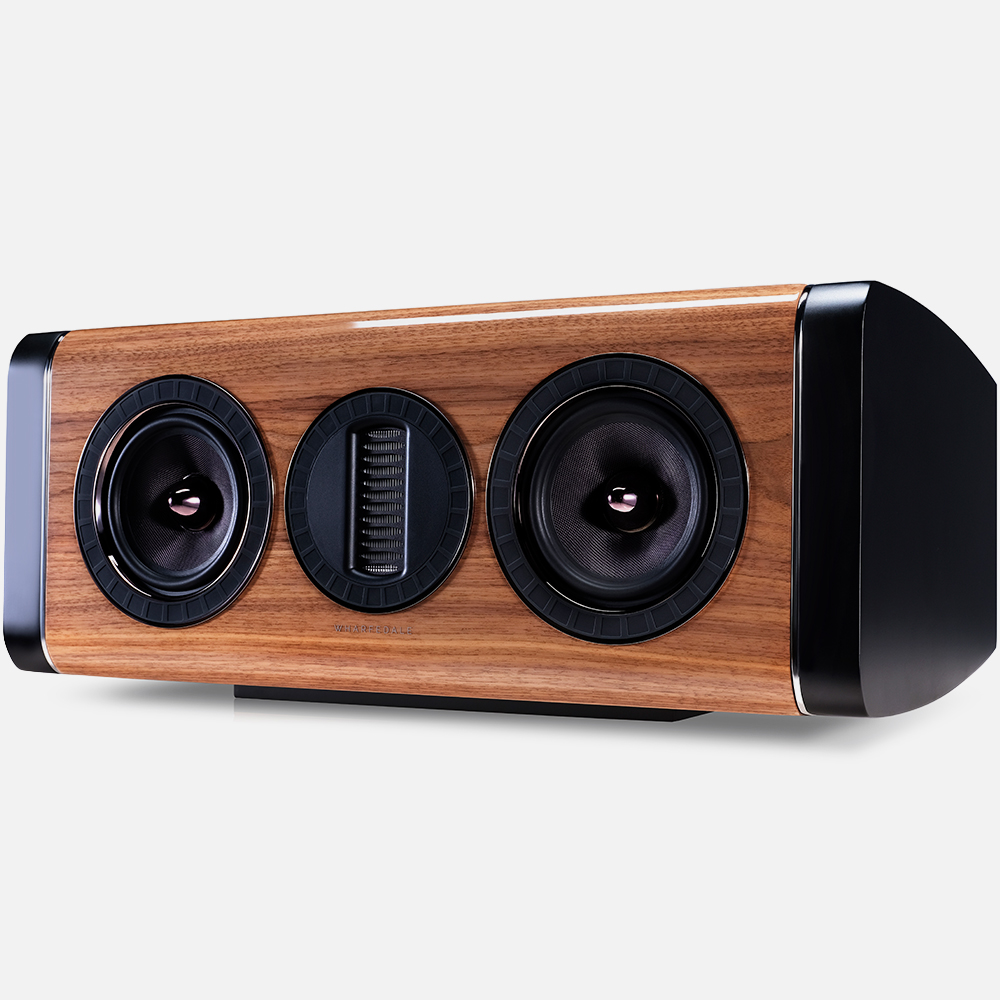

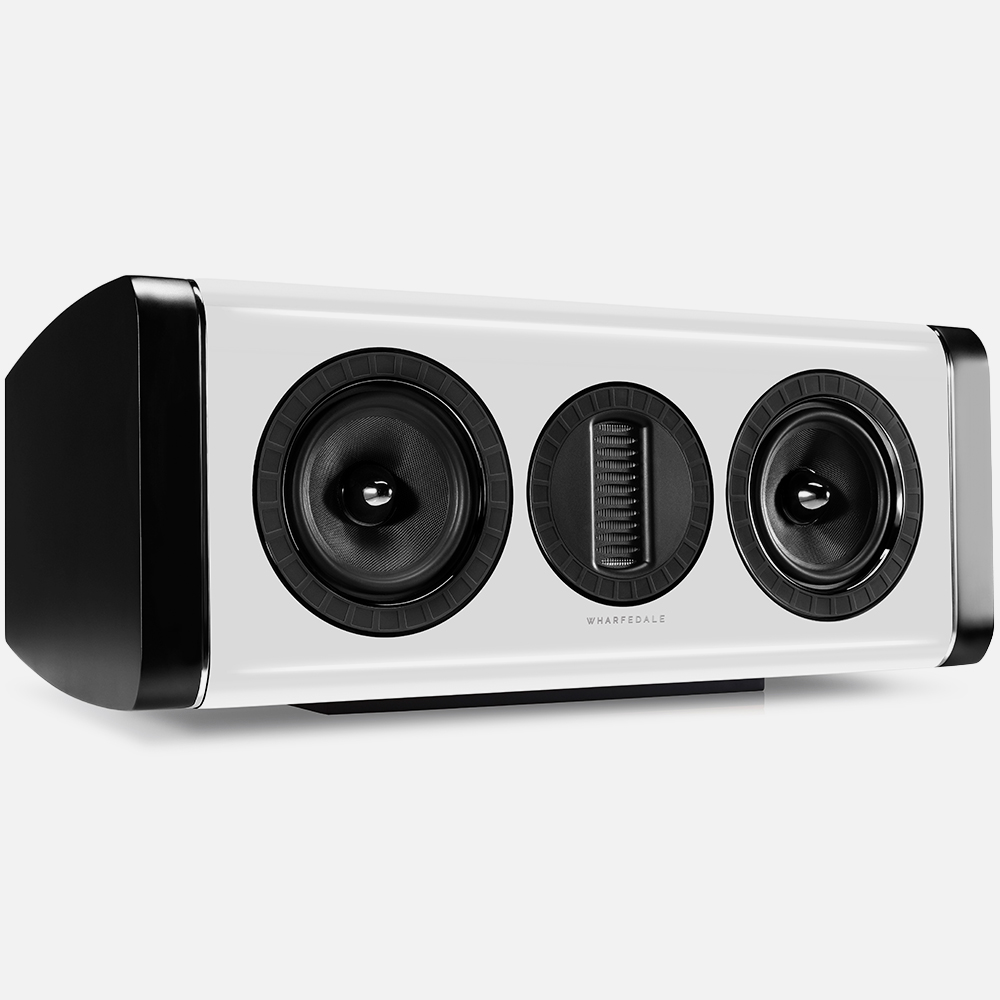

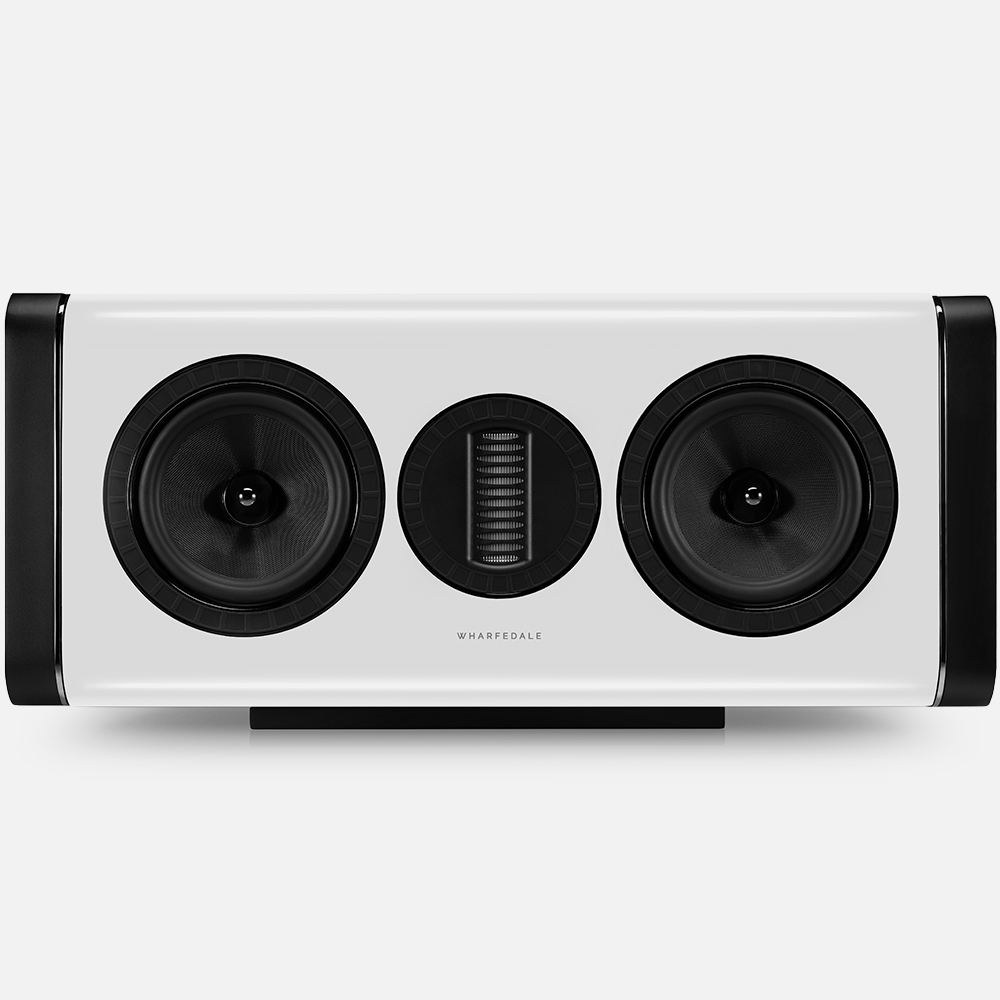

| Finish | Walnut/White/Black hi-gloss |
