Specifications
| Type | Fully balanced hybrid preamplifier |
| Valves | 2 × ECC83 / 12AX7 Gold Lion |
| Operating mode | Class A |
| Output stage | Solid state |
| Volume control | Infrared |

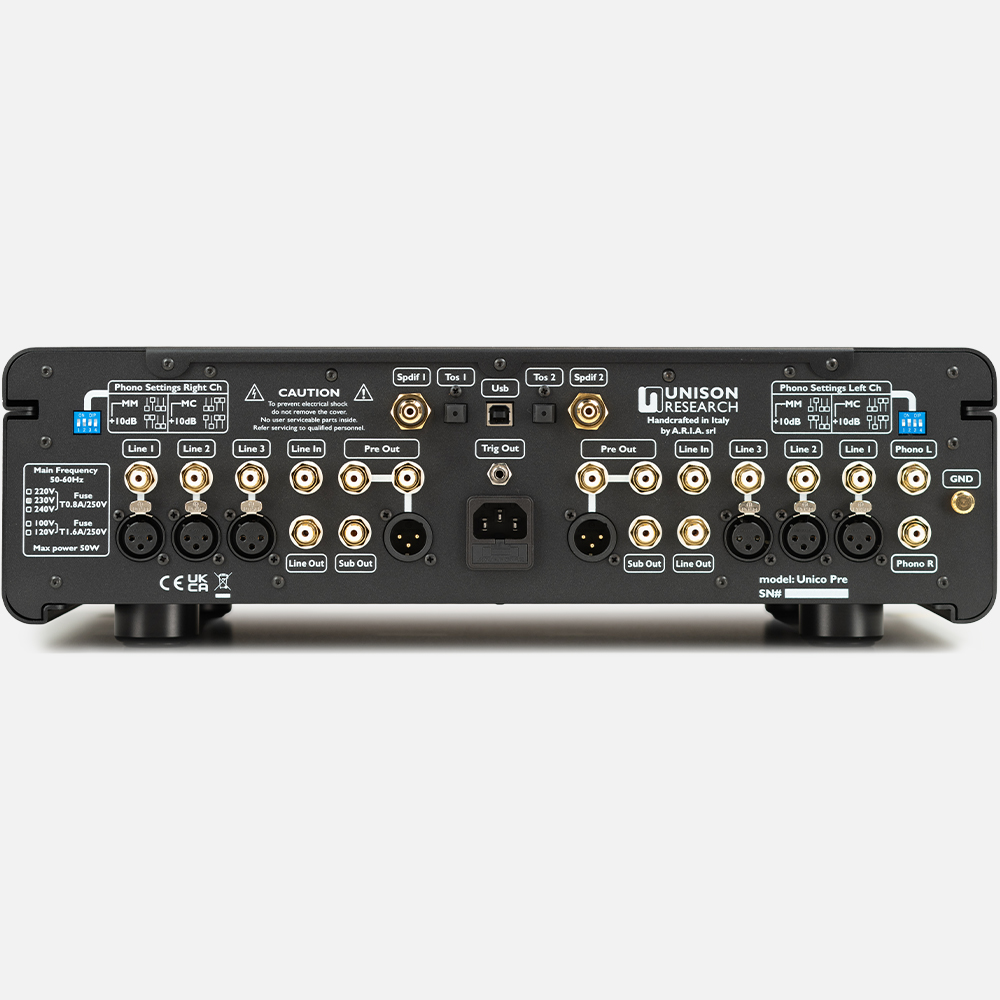

| Analogue inputs | 3 × Line RCA 3 × Line XLR 1 × Phono MM / MC 1 × Line In |
| Digital inputs | 1 × USB 2 × Toslink 2 × S/PDIF |
| Maximum input voltage | 2.58 Vrms (RCA) – 5 Vrms (XLR) |
| Input impedance | 20 kΩ (RCA) – 57 kΩ (XLR) |
| Gain | 20 dB (RCA) – 15 dB (XLR) |
| Outputs | 2 × RCA 1 × XLR Dual subwoofer output Line Out 1 × 12 V Remote Power On |
| Maximum output voltage (@1% THD+N, 1kHz) | 8 V (RCA) – 16 V (XLR) |
| Output impedance | 770 Ω (RCA) – 1500 Ω (XLR) |
| Global feedback | 0 dB |
| Power consumption | 50 VA |
| DAC | Sabre ES9018K2M |
| USB | USB-B input, PCM up to 384 kHz, native DSD up to 256×, DoP up to 128× |
| Toslink | 2 × inputs up to 192 kHz |
| S/PDIF | 2 × inputs up to 192 kHz |
| Dimensions | 45 × 43 × 14 cm (17.5 × 17 × 5.5 inches) |
| Net weight | 11 kg |
